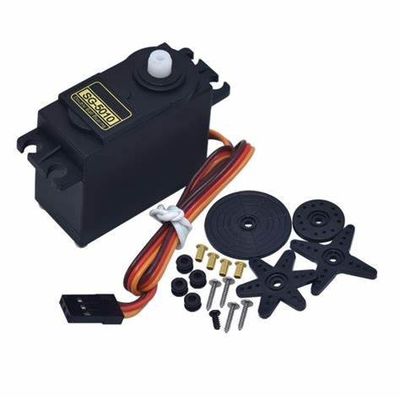

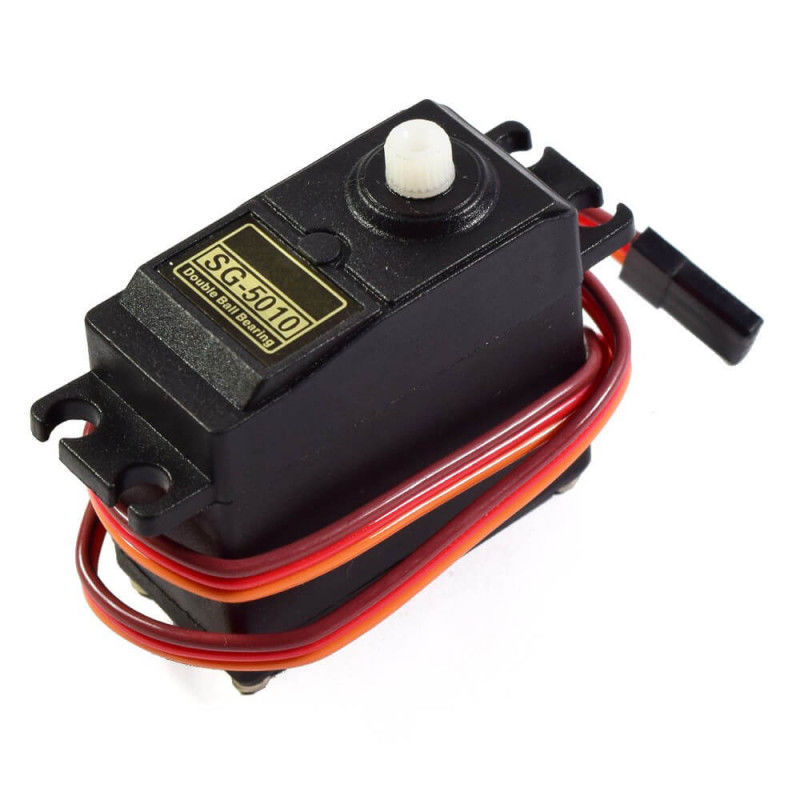

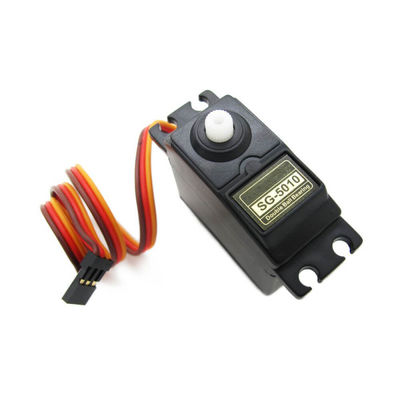

TIANKONGRC SG5010 Standard Servo Motor 5.5 KG Torque

TIANKONGRC SG5010 Standard Servo Motor 5.5 KG Torque

TIANKONGRC SG5010 Standard Servo Motor 5.5 KG Torque

Brand Name: TIANKONGRC
Model Number: SG5010
MOQ: 100PCS
Price: 1.5USD
Payment Terms: Paypal,T/T, Western Union, MoneyGram
Supply Ability: 10000PCS/Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE&ROHS
Torque:
4.5-6.5kg.cm
Rotational Speed:
0.15sec/60 Degree(4.8V), 0.18sec/60 Degree(6V)
Dimension:
40.5*20*39.5mm
Weight:
45g
Operation Voltage:
4.8V-6V
Gear Material:
Plastic
Shell Structure:
Plastic
Packaging Details:
Color Box
Supply Ability:
10000PCS/Month
Product Description

Specification:
Operation Angle: 90 degree(adjustable) , 180 degree(adjustable) , 270 degree(adjustable), and 360 degree continuous rotation(not adjustable)
Operation Voltage: 4.8V-6V
Speed: 0.15sec/60 degree(4.8V), 0.18sec/60 degree(6V)
Torque:4.5kg.cm(4.8V),6.5kg.cm.(6V)
Control Singal: Pulse width modification
PWM: 500 - 2500 usec
Middle Pont: 1500 usec



Application :



TIANKONGRC SG5010 Standard Servo Motor 5.5 KG Torque 0
