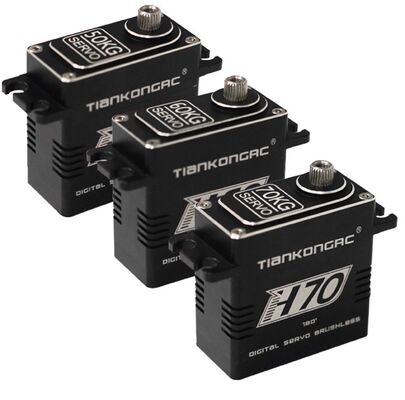

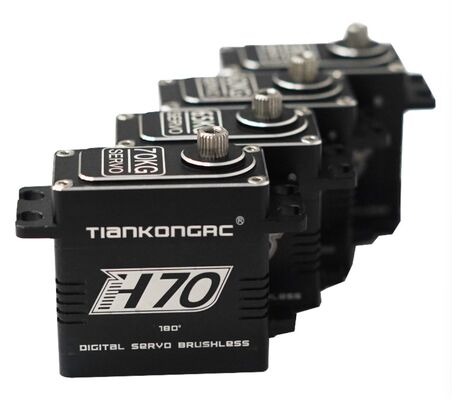

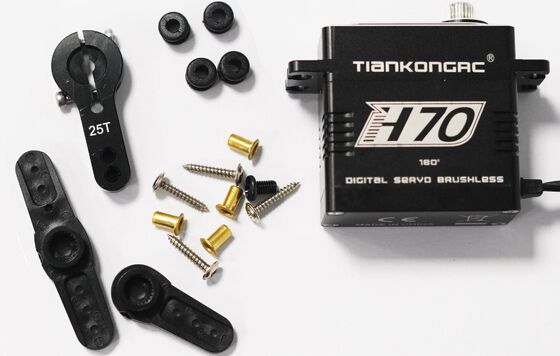

TTIANKONGRC 70KG High Torque Digital RC Brushless Servo Motor Waterproof All-Metal High Voltage 4.8~8.4V 180 Degree Brushless Servo For Off-Road Vehicle

Brand Name:	TIANKONGRC
Model Number:	H70
MOQ:	10PCS
Price:	27.0USD
Payment Terms:	Paypal,T/T, Western Union, MoneyGram
Supply Ability:	10000PCS/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE&ROHS

Torque:

58kg.cm/4.8V, 71kg.cm/8.4V

Rotational Speed:

0.21 Sec/60°(4.8V), 0.12 Sec/60°(8.4V)

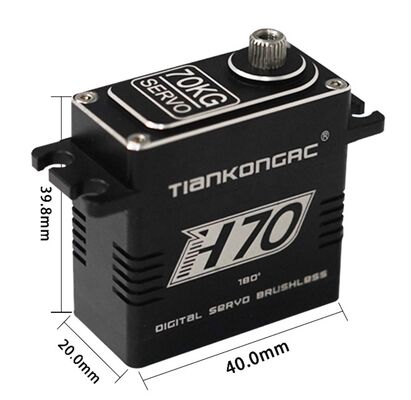

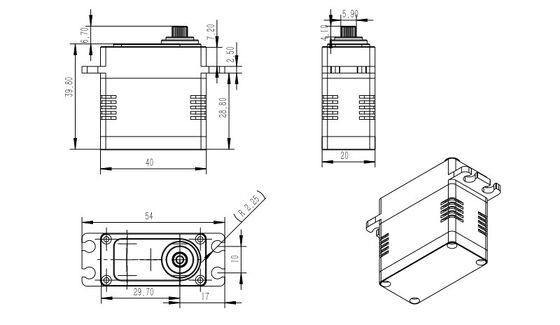

Dimension:

40.0*20.0*39.8mm

Weight:

80g±5%

Packaging Details:

Color Box

Supply Ability:

10000PCS/Month

Product Description

Features:

High Torque and High Speed:
This servo offers outstanding performance at different voltages. At the rated voltage of 8.4V, the no-load speed reaches 0.12sec/60°, and the peak stall torque is as high as 71kg·cm. It can easily handle the complex operational requirements of RC climbing cars.
Full Metal Structure and Waterproof Design:
With a full metal casing and steel gears, the servo is robust and durable. The waterproof feature allows it to be used in harsh environments, effectively extending its service life.
Brushless Motor Drive:
Equipped with a brushless motor, it offers higher efficiency, lower noise, and a longer lifespan compared to traditional brushed motors.
High Precision and Fast Response:
With an operating frequency of 1520ms/333Hz and a dead zone width of only 3 microseconds, the servo can quickly and accurately respond to control signals.

Specifications:

Operating Voltage	4.8V	6V	7.4V	8.4V
No Load Speed	0.21sec/60°	0.17sec/60°	0.14sec/60°	0.12sec/60°
Peak Stall Torque	52kg·cm	62kg·cm	68kg·cm	71kg·cm
Dimension	40.0 x 20.0 x 39.8 mm
Weight	80g ± 5%
Operating Temperature	-20℃ to 60℃
Operating Frequency	1520ms/333Hz 0.5-2.5ms
Dead Zone Width	3usec
Motor Type	Brushless		Bearing Type	2BB
Gear Material	Steel		Cable Length	30cm
