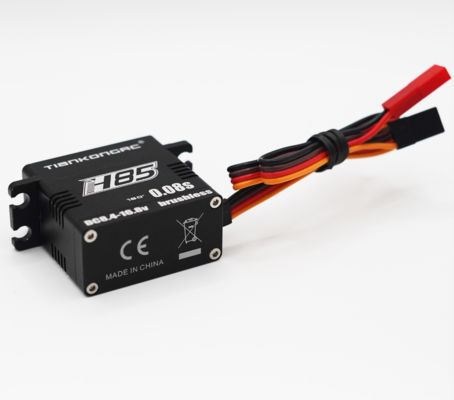

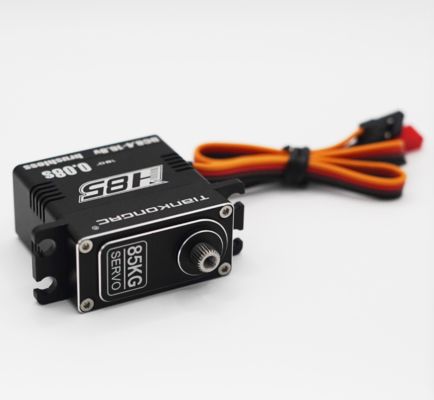

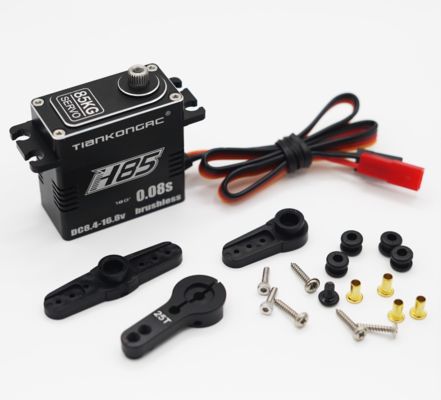

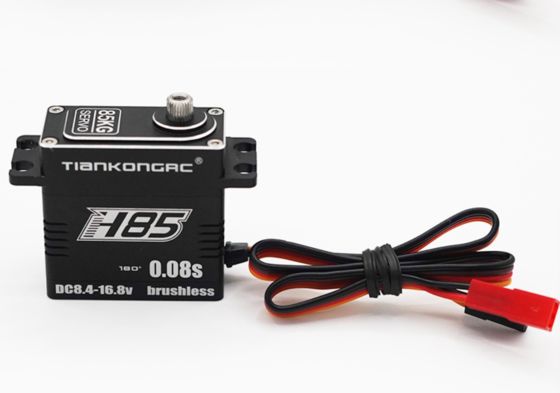

TIANKONGRC H85 8.4-16.8V 85KG High-Speed Full Metal Waterproof Digital Brushless Servo Motor For RC Climbing Car

Brand Name:	TIANKONGRC
Model Number:	H85
MOQ:	10PCS
Price:	44.2USD
Payment Terms:	Paypal,T/T, Western Union, MoneyGram
Supply Ability:	10000PCS/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE&ROHS

Torque:

53kg.cm/8.4V, 84kg.cm/16.8V

Rotational Speed:

0.17 Sec/60°(8.4V), 0.08 Sec/60°(16.8V)

Dimension:

40.0*20.0*40.5mm

Weight:

85g±5%

Packaging Details:

Color Box

Supply Ability:

10000PCS/Month

Product Description

Features:

High Torque and High Speed:
This servo offers outstanding performance at different voltages. At the rated voltage of 16.8V, the no-load speed reaches 0.08sec/60°, and the peak stall torque is as high as 85kg·cm. It can easily handle the complex operational requirements of RC climbing cars.
Full Metal Structure and Waterproof Design:
With a full metal casing and steel gears, the servo is robust and durable. The waterproof feature allows it to be used in harsh environments, effectively extending its service life.
Brushless Motor Drive:
Equipped with a brushless motor, it offers higher efficiency, lower noise, and a longer lifespan compared to traditional brushed motors.
High Precision and Fast Response:
With an operating frequency of 1520ms/333Hz and a dead zone width of only 2 microseconds, the servo can quickly and accurately respond to control signals.

Specifications:

Operating Voltage	8.4V	10.4v	12.8V	15V	16.8V
No Load Speed	0.17sec/60°	0.14sec/60°	0.12sec/60°	0.10sec/60°	0.08sec/60°
Peak Stall Torque	53kg·cm	65kg·cm	72kg·cm	77kg·cm	84kg·cm
Dimension	40.0 x 20.0 x 40.5 mm
Weight	85g ± 5%
Operating Temperature	-20℃ to 60℃
Operating Frequency	1520ms/333Hz
Dead Zone Width	2usec
Motor Type	Brushless		Gear Type	Steel gears with steel ball bearings

Application :
