TIANKONGRC TD8325MG 25Kg High Torque Coreless Servo Motor, Waterproof

Name: TIANKONGRC TD8325MG 25Kg High Torque Coreless Servo Motor, Waterproof
Brand: HUIZHOU BAIZE TECHNOLOGY CO.,LIMITED
SKU: TD-8325MG
Price: 5.9 USD
Availability: InStock

Brand Name:	TIANKONGRC
Model Number:	TD-8325MG
MOQ:	100PCS
Price:	5.9USD
Payment Terms:	Paypal,T/T, Western Union, MoneyGram
Supply Ability:	10000PCS/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE&ROHS

Torque:

23.5kg.cm/4.8V, 26.8kg.cm/7.4V

Rotational Speed:

0.2 Sec/60°(4.8V), 0.26 Sec/60°(7.4V)

Dimension:

40.0*20.5*40.9mm

Weight:

60g±5g

Packaging Details:

Color Box

Supply Ability:

10000PCS/Month

Product Description

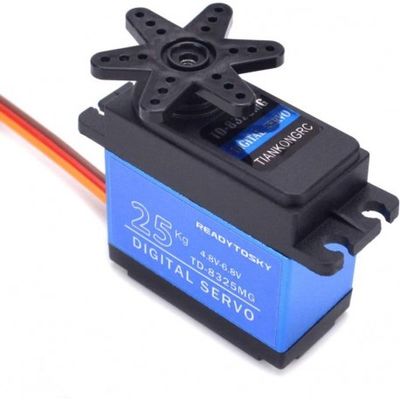

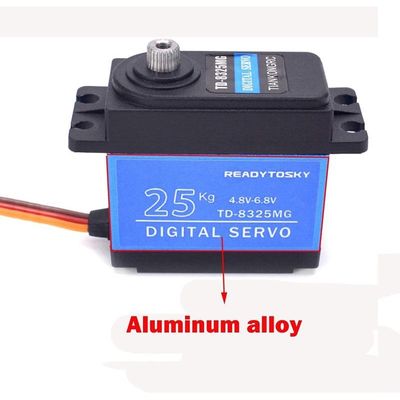

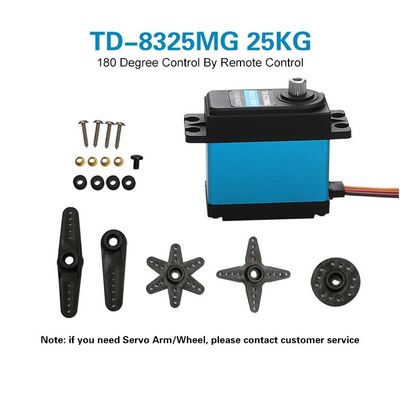

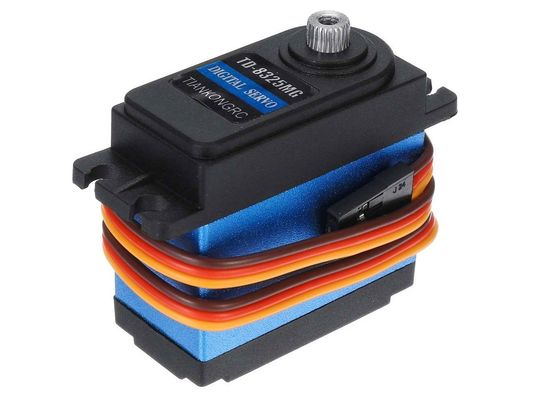

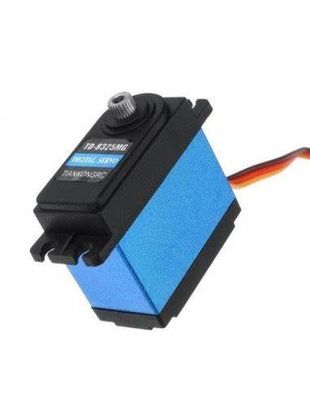

TD-8325MG 25kg Waterproof Digital Metal Gear Servo

Dimension : 40.6mm x 20.4mm x 39mm
Net weight: 60g
Operating Speed : 0.27sec/60° (4.8V)
Operating Speed : 0.23sec/60° (6.6V)
Stall Torque : 19.9kg-cm at 4.8V
Stall Torque : 25.3 kg-cm at 6.6V
Operation Voltage : 4.8 - 6.6 DC Volts
Working Frequence:1520us/333hz
Operating temperature: -20 C ~ 60 C
Motor Type: DC Motor

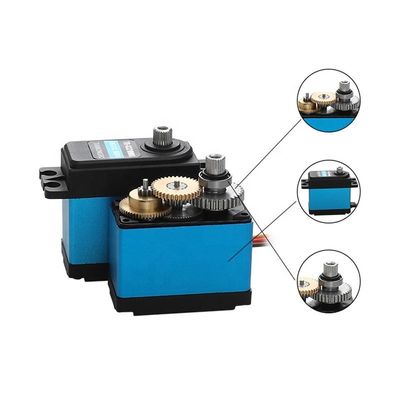

Gear Type: Copper& Aluminum
Bearing Type: Ball bearing x 2
Digital: Yes
Waterproof: Yes

Application :

TIANKONGRC TD8325MG 25Kg High Torque Coreless Servo Motor, Waterproof 0

TIANKONGRC TD-8320MG 20KG Waterproof Metal Gear High Torque Digital Servo Motor for RC Hobby Crawler, Truck, Car, Boats, Robots
