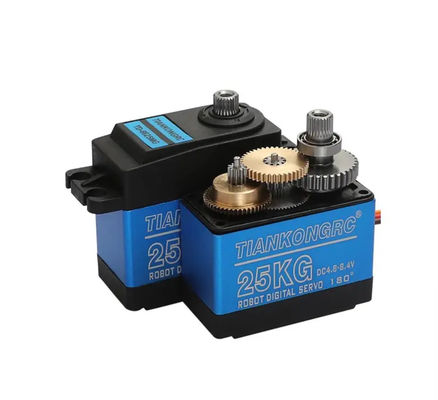

TIANKONGRC TD-6625MG 25KG 4.8-8.4V Metal Gear Digital Servo Motor for RC Robot Smart Car

Name: TIANKONGRC TD-6625MG 25KG 4.8-8.4V Metal Gear Digital Servo Motor for RC Robot Smart Car
Brand: HUIZHOU BAIZE TECHNOLOGY CO.,LIMITED
SKU: TD-6625MG
Price: 6.4 USD
Availability: InStock

Brand Name:	TIANKONGRC
Model Number:	TD-6625MG
MOQ:	100PCS
Price:	6.4USD
Payment Terms:	Paypal,T/T, Western Union, MoneyGram
Supply Ability:	10000PCS/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE&ROHS

Torque:

24.5kg.cm/4.8V, 27.5kg.cm/8.4V

Rotational Speed:

0.20 Sec/60°(4.8V), 0.17 Sec/60°(8.4V)

Dimension:

40.0*20.5*40.5mm

Weight:

60g±5g

Packaging Details:

Color Box

Supply Ability:

10000PCS/Month

Product Description

Specification:

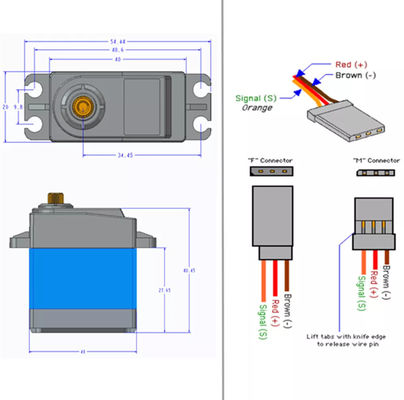

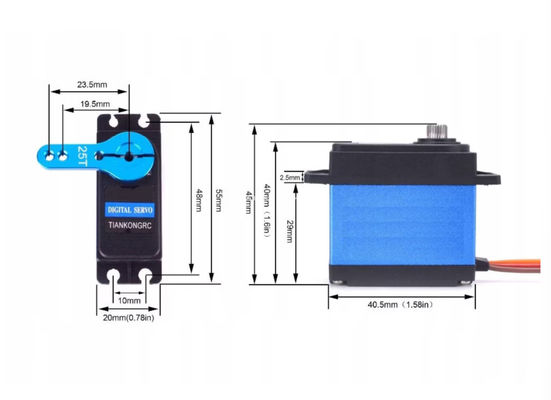

Size: 40*20.5*40.5mm
Operation voltage: 4.8V-8.4V
Horn gear spline: 25T 5.9mm
No load speed: 0.20 sec/60°(4.8V), 0.17 sec/60°(8.4V)
Running current(at no load): 210mA/4.8V, 260mA/8.4V
Peak stall torque: 24.5kg.cm/4.8V, 27.5kg.cm/8.4V
Stall current: 2600mA/4.8V, 3400mA/8.4V

Command signal: Pulse width modification

Pulse width range: 500-2500usec

Stop point: 1500usec
