TIANKONGRC TD-8320MG 20KG Waterproof Metal Gear High Torque Digital Servo Motor for RC Hobby Crawler, Truck, Car, Boats, Robots

Name: TIANKONGRC TD-8320MG 20KG Waterproof Metal Gear High Torque Digital Servo Motor for RC Hobby Crawler, Truck, Car, Boats, Robots
Brand: HUIZHOU BAIZE TECHNOLOGY CO.,LIMITED
SKU: TD-8320MG
Price: 5.2 USD
Availability: InStock

Brand Name:	TIANKONGRC
Model Number:	TD-8320MG
MOQ:	100PCS
Price:	5.2USD
Payment Terms:	Paypal,T/T, Western Union, MoneyGram
Supply Ability:	10000PCS/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE&ROHS

Torque:

20.5kg.cm/4.8V, 22.8kg.cm/7.4V

Rotational Speed:

0.22 Sec/60°(4.8V), 0.18 Sec/60°(8.4V)

Dimension:

40.0*20.5*40.8mm

Weight:

60g±5g

Packaging Details:

Color Box

Supply Ability:

10000PCS/Month

Product Description

Specification :

Dimension : 40.8mm x 20.5mm x 40mm
Net weight: 60g
Operating Speed : 0.22sec (4.8V)
Operating Speed : 0.18sec (8.4V)
Stall Torque : 20.5 kg-cm at 4.8V
Stall Torque : 22.8 kg-cm at 8.4V
Operation Voltage : 4.8 – 8.4 DC Volts
Working Frequence:1520us/333hz
Operating temperature: -20 ℃ ~ 60 ℃
Motor Type: DC Motor
Gear Type: Copper& Aluminum
Bearing Type: Ball bearing x 2
Digital: Yes
Waterproof: Yes

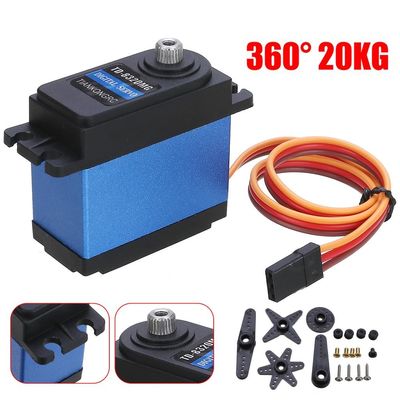

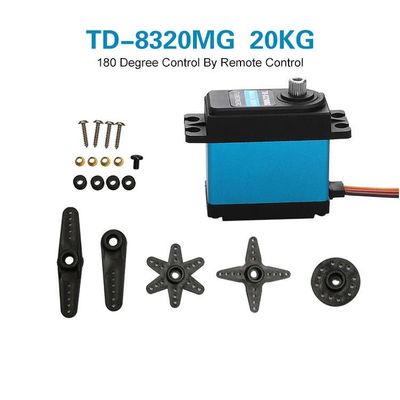

Packing List :

1 x Servo Motor

5 x Robotic Arm

13 x Accessries

Application :

TIANKONGRC TD-8320MG 20KG Waterproof Metal Gear High Torque Digital Servo Motor for RC Hobby Crawler, Truck, Car, Boats, Robots 0

TIANKONGRC TD-8320MG 20KG Waterproof Metal Gear High Torque Digital Servo Motor for RC Hobby Crawler, Truck, Car, Boats, Robots
