products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Underwater Servo Motor
Created with Pixso.

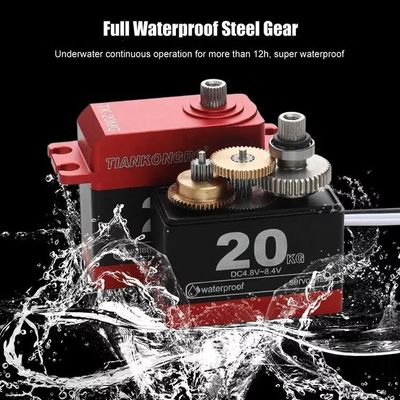

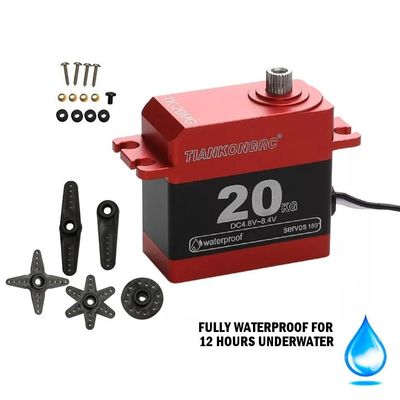

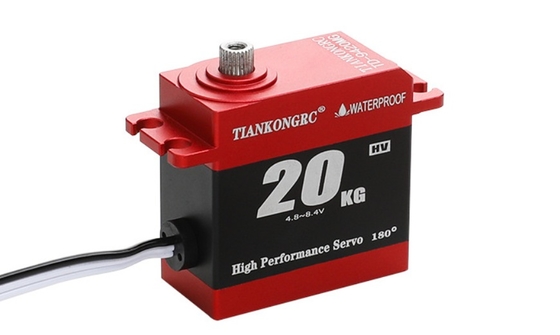

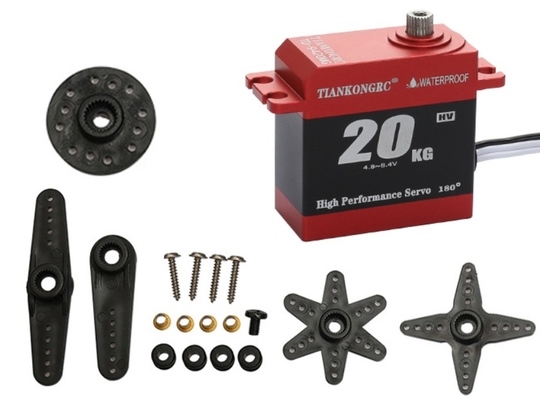

TIANKONGRC TD-9420MG 20KG Waterproof Servo High Torque Motor Digital Servo Underwater RC Servo for RC Car Robot Helicopter

TIANKONGRC TD-9420MG 20KG Waterproof Servo High Torque Motor Digital Servo Underwater RC Servo for RC Car Robot Helicopter

TIANKONGRC TD-9420MG 20KG Waterproof Servo High Torque Motor Digital Servo Underwater RC Servo for RC Car Robot Helicopter

Brand Name: TIANKONGRC
Model Number: TD-9420MG
MOQ: 100PCS
Price: 11.8USD
Payment Terms: Paypal,T/T, Western Union, MoneyGram
Supply Ability: 10000PCS/Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE&ROHS
Torque:
20.5-23.8kg.cm
Rotational Speed:
0.10sec/60 Degree(4.8V), 0.14sec/60 Degree(8.4V)

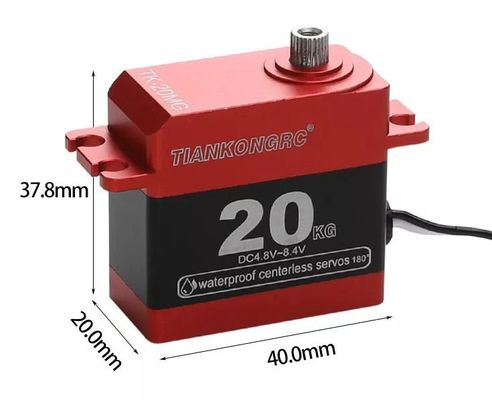

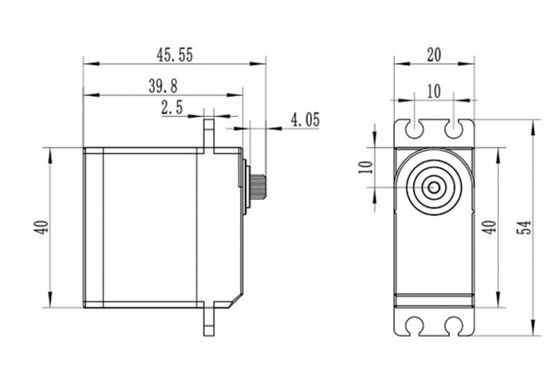

Dimension:
40*20*39.8mm
Weight:
60g±5g
Operation Voltage:
4.8V-8.4V
Packaging Details:
Color Box
Supply Ability:
10000PCS/Month
Product Description

Specification:
Operation Angle: 90 degree(adjustable) , 180 degree(adjustable) , 270 degree(adjustable), and 360 degree continuous rotation(not adjustable)
Operation Voltage: 4.8V-8.4V
Speed: 0.10sec/60 degree(4.8V), 0.14sec/60 degree(8.4V)
Torque:20.5kg.cm(4.8V),23.8kg.cm.(8.4V)
Control Singal: Pulse width modification
PWM: 500 - 2500 usec
Middle Pont: 1500 usec



Application :



TIANKONGRC TD-9420MG 20KG Waterproof Servo High Torque Motor Digital Servo Underwater RC Servo for RC Car Robot Helicopter 0
