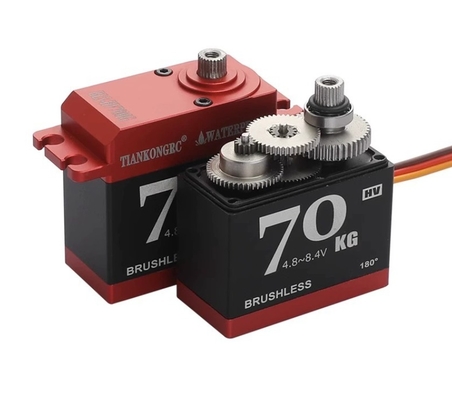

TIANKONGRC BLS-HV70MG 70KG Brushless Servo High Torque Digital RC Servo Motor Waterproof All-Metal High Voltage 4.8~8.4V 180° Control Angle Steering Servo Motor For 1:8 1:10 RC Car

Name: TIANKONGRC BLS-HV70MG 70KG Brushless Servo High Torque Digital RC Servo Motor Waterproof All-Metal High Voltage 4.8~8.4V 180° Control Angle Steering Servo Motor For 1:8 1:10 RC Car
Brand: HUIZHOU BAIZE TECHNOLOGY CO.,LIMITED
SKU: BLS-HV70MG
Price: 21.4 USD
Availability: InStock

Brand Name:	TIANKONGRC
Model Number:	BLS-HV70MG
MOQ:	100PCS
Price:	21.4USD
Payment Terms:	Paypal,T/T, Western Union, MoneyGram
Supply Ability:	10000PCS/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE&ROHS

Torque:

55.0-71.0kg.cm

Rotational Speed:

0.13sec/60 Degree(4.8V), 0.10sec/60 Degree(8.4V)

Dimension:

40*20*39.8mm

Weight:

90g±5g

Operation Voltage:

4.8V-8.4V

Packaging Details:

Color Box

Supply Ability:

10000PCS/Month

Product Description

Features :

70KG brushless servo with high operating voltage from 4.8v to 8.4v DC
No-load speed: 0.13sec/60° (at 4.8V), 0.10sec/60° (at 8.4V)
Stall torque: 55 Kg-cm (at 4.8V), 71 Kg-cm (at 8.4V)
70KG Waterpoof Servo: Waterproof performance IP67. Controllable angle range from 0 to 180 degrees
All metal servo: Full aluminum case (includes top cover, CNC middle shell and bottom cover), stainless steel metal gears, which make it precise control, less noise, light weight, higher operating accuracy

Specification:

Control Angle	180 Degree
Stall Torque	55 Kg-cm (at 4.8V), 71 Kg-cm (at 8.4V)
No-load speed	0.13sec/60° (at 4.8V), 0.10sec/60° (at 8.4V)
Operating Voltage	4.8 ~ 8.4 DC Volts
Pulse width range	500～2500 μsec
Rotating direction	Counterclockwise (when 500～2500 μsec

Dead band	2μsec
Motor Type	Brushless Motor
Gear Type	All-metal
Bearing	2BB
Dimensions	40x20x39.8mm
Case Material	All aluminium housing
Horns Material	Aluminium + Plastic

Package includes :

1 x 70kg Robot Servo (180°)
Serveral plastic horns
Screws (As Shown on The Picture)

Application :

TIANKONGRC BLS-HV70MG 70KG Brushless Servo High Torque Digital RC Servo Motor Waterproof All-Metal High Voltage 4.8~8.4V 180° Control Angle Steering Servo Motor For 1:8 1:10 RC Car 0
