Single Axis Semi Metal Low-Speed Servo Motor
Created with Pixso.

TIANKONGRC TD-8125MG 25KG 4.8-7.2V Digital Servo 360 Degree Waterproof Large Torque Metal Gear for DIY Robot Robotic Arm RC Model PWM 500μs-2500μs

TIANKONGRC TD-8125MG 25KG 4.8-7.2V Digital Servo 360 Degree Waterproof Large Torque Metal Gear for DIY Robot Robotic Arm RC Model PWM 500μs-2500μs

TIANKONGRC TD-8125MG 25KG 4.8-7.2V Digital Servo 360 Degree Waterproof Large Torque Metal Gear for DIY Robot Robotic Arm RC Model PWM 500μs-2500μs

Brand Name: TIANKONGRC
Model Number: TD-8125MG
MOQ: 100PCS
Price: 5.8USD
Payment Terms: Paypal,T/T,Western Union,Mongram
Supply Ability: 10000PCS/Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE&ROHS
Working Voltage Range:
4.8-7.4V
No Load Speed:
0.18sec/60°(4.8V), 0.14sec/60°(7.4V)
Runnig Current:
140mA(4.8V), 200mA(7.4V)
Peak Stall Torque:
23.5kg.cm(4.8V), 26.8kg.cm(7.4V)
Stall Current:
2600mA±10%(4.8V), 3400mA±10%(7.4V)
Packaging Details:
Color Box
Supply Ability:
10000PCS/Month
Product Description

Features :




Large Torque :Peak stall torque is 23.5kg.cm- 26.8kg.cm

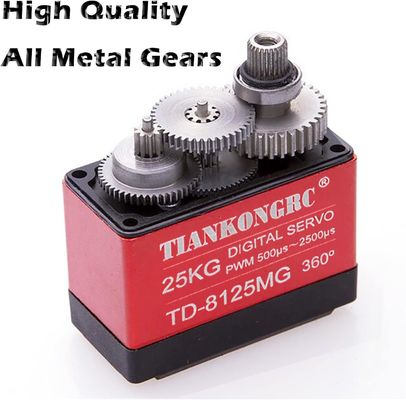

High Quality:equipped with strong metal gear,CNC aluminium middle Shell

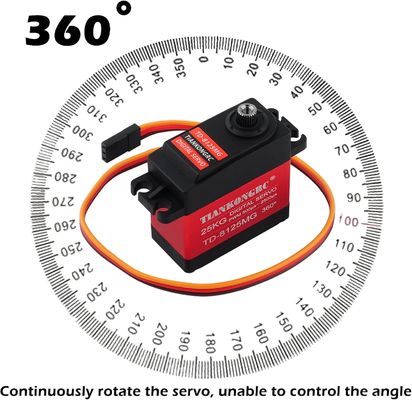

High Rotation:well-controlled, 360 degree rotation(can't control its angle).
Widely uesd for DIY Car Robot Robotic Arm RC Model



Electrical Specification



  • Working voltage range: 4.8-7.4V
  • No load speed:0.18sec/60°(4.8V), 0.14sec/60°(7.4V)
  • Runnig current:140mA(4.8V), 200mA(7.4V)
  • Peak stall torque: 23.5kg.cm(4.8V), 26.8kg.cm(7.4V)
  • Stall current: 2600mA±10%(4.8V), 3400mA±10%(7.4V)



Mechanical Specification :

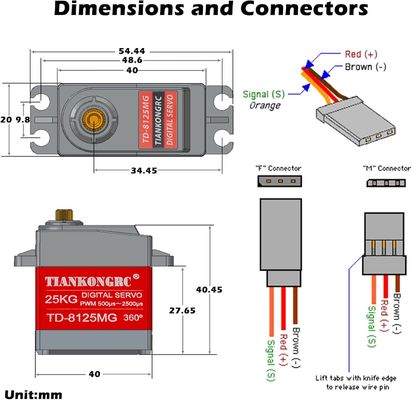

  • Size: 40.0*20.5*40.5mm
  • Weight: 56g±5%
  • Gear type: 5 Metal
  • Limit angle: 360°
  • Bearing: 2BB

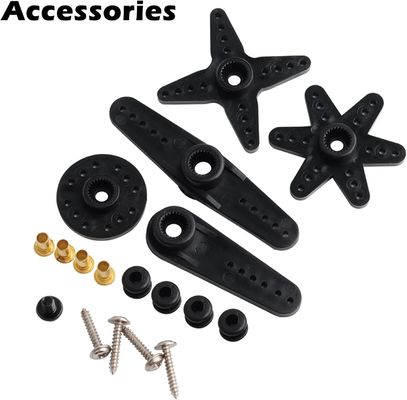

  • Horn type: Plastic, POM
  • Case: Engineering plastics(PBT)+Aluminum alloy
  • Connector wire: 320mm±5mm
  • Motor: Carbon brush motor



Control Specification :



  • Command signal: Pulse width modification
  • Amplifier type: Digital controller
  • Pulse width range: 500～2500usec
  • Neutral position: 1500usec
  • Running degree: 360°±3°(when 500～2500usec)
  • Dead band width: 5 usec
  • Rotating direction: Counterclockwise (when 1000～2000usec)
  • Storage Temperature Range: -30°C～80°C
  • Operating Temperature Range: -25°C～70°C
