products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Single Axis Semi Metal Low-Speed Servo Motor
Created with Pixso.

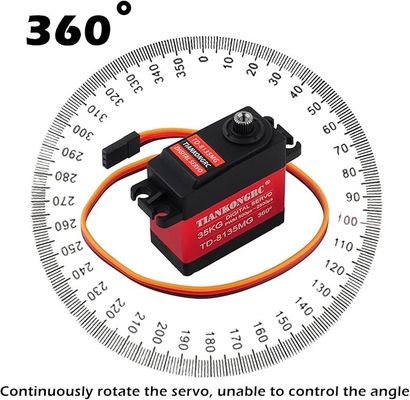

TIANKONGRC TD-8135MG 35KG 360 Degree Continuous Rotation Servo Digital Coreless 500μs-2500μs Large Torque Metal Gear for DIY Robot Robotic RC Model

TIANKONGRC TD-8135MG 35KG 360 Degree Continuous Rotation Servo Digital Coreless 500μs-2500μs Large Torque Metal Gear for DIY Robot Robotic RC Model

TIANKONGRC TD-8135MG 35KG 360 Degree Continuous Rotation Servo Digital Coreless 500μs-2500μs Large Torque Metal Gear for DIY Robot Robotic RC Model

Brand Name: TIANKONGRC
Model Number: TD-8135MG
MOQ: 100PCS
Price: 8.4USD
Payment Terms: Paypal,T/T, Western Union, MoneyGram
Supply Ability: 10000PCS/Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE&ROHS
Stall Torque:
32.7kg-cm 4.8V, 35.2kg-cm 8.4V
No Load Speed:
0.32sec-60 Deg (4.8 V), 0.22sec-60 Deg 8.4V
Working Voltage:
4.8V - 8.4V
Pulse Width Range:
500 - 2500 Usec
Packaging Details:
Color Box
Supply Ability:
10000PCS/Month
Product Description

Features:


- High Voltage Digital Servo
- Waterproof

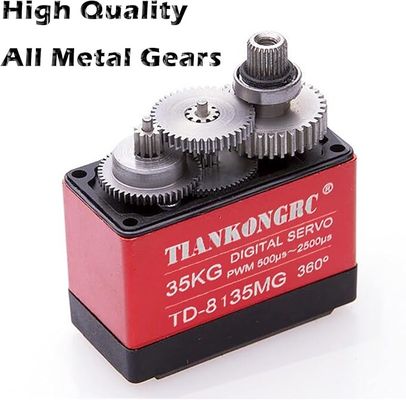

- Meatl Gears
- Aluminium Case
- High Torque




Specifications:


No load speed: 0.32sec-60 deg (4.8 V), 0.22sec-60 deg (8.4V)
Stall torque: 32.7kg-cm 4.8V, 35.2kg-cm 8.4V

Operating temperature: -25℃ - +70℃
Ball Bearing: 2BB
Working voltage: 4.8V - 8.4V
Pulse Width Range: 500 - 2500 usec

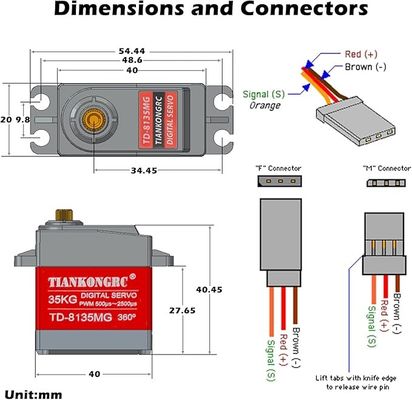

Size: 40 x 20.5 x 40.5mm
Weight: 56 grams
Color: Red

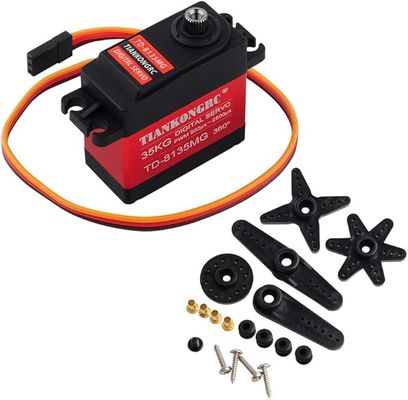

Packing List:



1 x TD8135MG Digital Metal Gear Servo 35Kgs

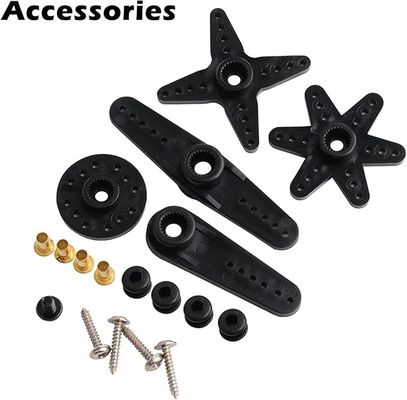

1 x Plastic Servo Horns set



TIANKONGRC TD-8135MG 35KG 360 Degree Continuous Rotation Servo Digital Coreless 500μs-2500μs Large Torque Metal Gear for DIY Robot Robotic RC Model 0
