products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Single Axis Semi Metal Low-Speed Servo Motor
Created with Pixso.

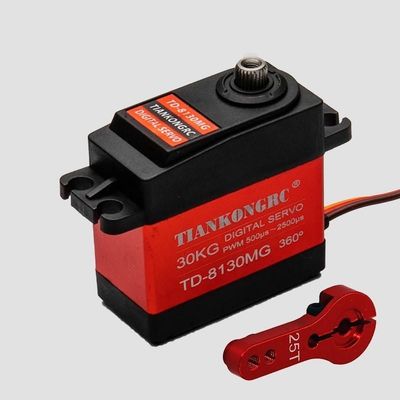

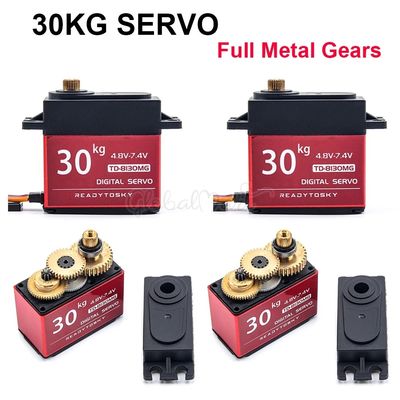

TIANKONGRC TD-8130MG 4.8V - 8.4V 180 Degrees 30KG Digital Metal Gear Waterpoof Servo Motor For RC Models, Robots

TIANKONGRC TD-8130MG 4.8V - 8.4V 180 Degrees 30KG Digital Metal Gear Waterpoof Servo Motor For RC Models, Robots

TIANKONGRC TD-8130MG 4.8V - 8.4V 180 Degrees 30KG Digital Metal Gear Waterpoof Servo Motor For RC Models, Robots

Brand Name: TIANKONGRC
Model Number: TD-8130MG
MOQ: 100PCS
Price: 8.1USD
Payment Terms: Paypal,T/T, Western Union, MoneyGram
Supply Ability: 10000PCS/Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE&ROHS
Stall Torque:
28.5kg-cm 4.8V, 33.8kg-cm 7.2V
No Load Speed:
0.22sec-60 Deg (4.8 V), 0.18sec-60 Deg 7.2V
Working Voltage:
4.8V - 8.4V
Ulse Width Range:
500 - 2500 Usec
Packaging Details:
Color Box
Supply Ability:
10000PCS/Month
Product Description
Features:

- High Voltage Digital Servo
- Waterproof
- Metal Gears
- Aluminium Case
- High Torque

Specifications:

No load speed: 0.22sec-60 deg (4.8 V), 0.18sec-60 deg 7.2V
Stall torque: 28.5kg-cm 4.8V, 33.8kg-cm 7.2V
Operating temperature: -25 +70 degrees Celsius
Ball Bearing: 2BB
Gear : Metal Gears
Working voltage: 4.8V - 8.4V
Pulse Width Range: 500 - 2500 usec

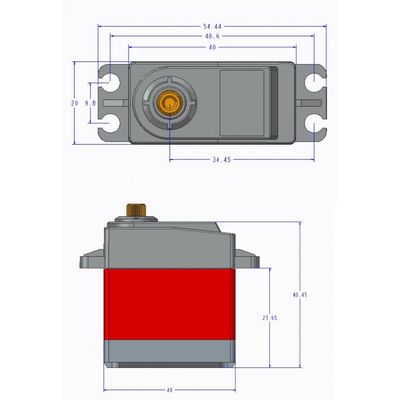

Size: 40 x 20.5 x 40.5mm
Weight: 56 grams
Color: Red

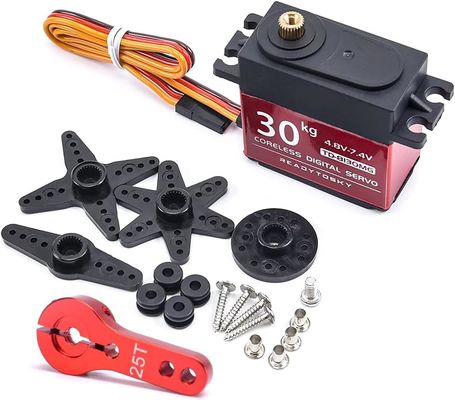

Packing List :

1 x TD8130MG Digital Metal Gear Waterproof Servo 30Kgs
1 x Plastic Servo Horns set

TIANKONGRC TD-8130MG 4.8V - 8.4V 180 Degrees 30KG Digital Metal Gear Waterpoof Servo Motor For RC Models, Robots 0
