Single Axis Semi Metal Low-Speed Servo Motor

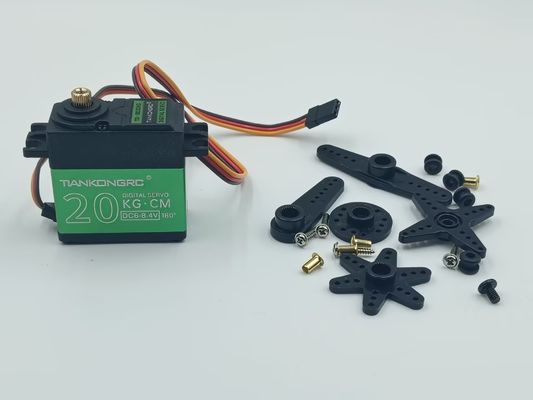

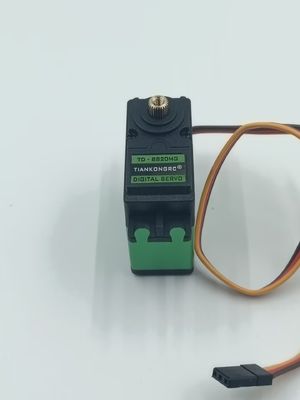

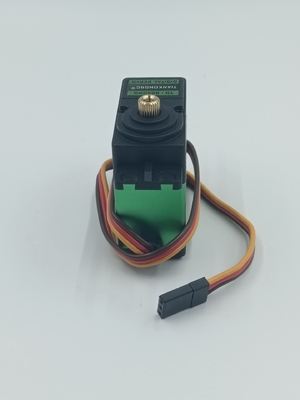

TIANKONGRC TD-8820MG 20kg Metal Gear High Torque 180/270/360° Digital RC Servo Motor For Remote Control Robot Cars Aircraft

Name: TIANKONGRC TD-8820MG 20kg Metal Gear High Torque 180/270/360° Digital RC Servo Motor For Remote Control Robot Cars Aircraft
Brand: HUIZHOU BAIZE TECHNOLOGY CO.,LIMITED
SKU: TD-8820MG
Price: 6.0 USD
Availability: InStock

Brand Name:	TIANKONGRC
Model Number:	TD-8820MG
MOQ:	100PCS
Price:	6.0USD
Payment Terms:	Paypal,T/T, Western Union, MoneyGram
Supply Ability:	10000PCS/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE&ROHS

Working Voltage:

4.8V ~ 8.4V

Torque:

20.5kg.cm(4.8V); 22.8kg.cm(8.4V)

Idle Speed:

0.18sec/60°(4.8V); 0.13sec/60(8.4V)

No-Load Current:

210mA(4.8V); 260mA(8.4V)

Packaging Details:

Color Box

Supply Ability:

10000PCS/Month

Product Description

Feature :

- High-precision metal gears with hard anodizing
- CNC aluminium middle Shell

Specification :

Product Size:40x20.0x41.5mm
Operating Voltage:4.8V - 8.4V
No-Load Speed:0.18sec/60° at 4.8V , 0.14sec/60° at 8.4V
No-Load Current:210mA - 260mA
Stall Torque:20.5kg.cm- 22.8kg.cm
Stall Current:2100mA±10% - 2700mA±10%
Control Signal:Pulse width modification
Pulse Width:500-2500usec
Center Position:1500usec
Rotation Angle:180°±3° (when 500-2500usec)
Dead Band Width:5usec
Weight:72g±5%

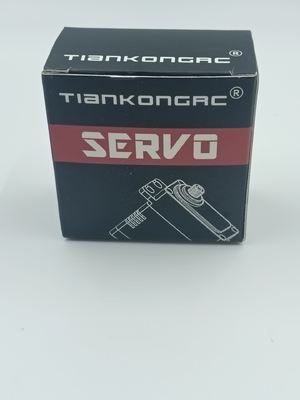

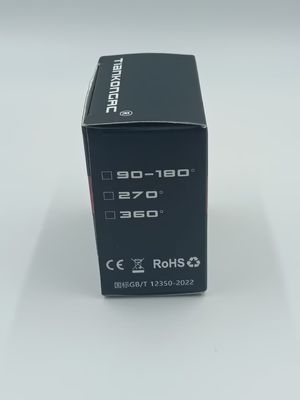

Package includes:

1 X TD-8820MG Digital Servo 25kg

Application:
