Single Axis Semi Metal Low-Speed Servo Motor
Created with Pixso.

TIANKONGRC TD-8160MG 60KG 6V-8.4V Metal Gear High Torque High Speed Waterproof Digital Servo Motor For 1/5 RC Car Robot

TIANKONGRC TD-8160MG 60KG 6V-8.4V Metal Gear High Torque High Speed Waterproof Digital Servo Motor For 1/5 RC Car Robot

TIANKONGRC TD-8160MG 60KG 6V-8.4V Metal Gear High Torque High Speed Waterproof Digital Servo Motor For 1/5 RC Car Robot

Brand Name: TIANKONGRC
Model Number: TD-8160MG
MOQ: 100PCS
Price: 14.8USD
Payment Terms: Paypal,T/T, Western Union, MoneyGram
Supply Ability: 10000PCS/Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE&ROHS
Working Voltage:
6V ~ 8.4V
Torque:
6V /58.5kg.cm , 8.4V /70kg.cm
Idle Speed:
6V/0.17sec / 60 Deg 8.4V/0.13sec / 60 Deg
Steering Angle:
180 / 270 Degree
Packaging Details:
Color Box
Supply Ability:
10000PCS/Month
Product Description

Feature :

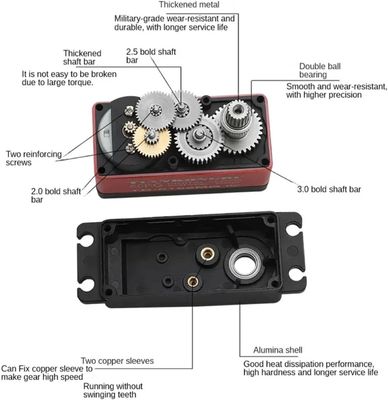

- High-precision metal gears with hard anodizing
- CNC aluminium middle Shell

Specification :


Working voltage:6V ~ 8.4V
Working temperature: -20C°~ +60C°
Torque :6V /58.5kg.cm , 8.4V /70kg.cm
Idle speed :6V/0.17sec / 60 deg
8.4V/0.13sec / 60 deg
Steering angle: 180 / 270 degree
Dead band :2usec
Lifetime:>15000 times without load
Moving angle:60°±10°
Drive type: MOS drive
Motor type:Cored motor
Potentiometer type:Direct drive
Signal booster type:Digital

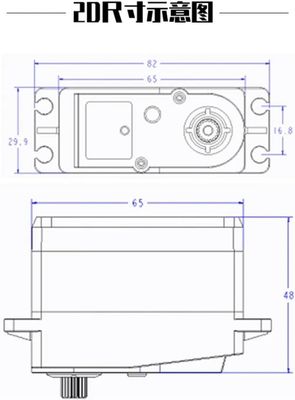

Size:65X30.2X49mm
Weight : 180g
Ball Bearing:2BB
Gear material:Metal gear
Case material: PA66+fiber40%
Wire length:260mm
Wire gauge No and plug type:26AWG,JR plug
Brown wire:Negative
Red wire:Positive
Orange wire:Singal


Application:



TIANKONGRC TD-8160MG 60KG 6V-8.4V Metal Gear High Torque High Speed Waterproof Digital Servo Motor For 1/5 RC Car Robot 0
