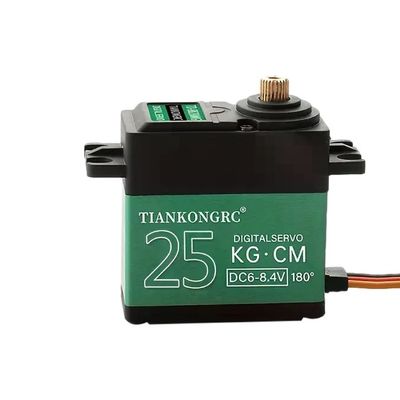

Single Axis Semi Metal Low-Speed Servo Motor

TIANKONGRC TD-8825MG Digital Servo 25kg High Torque 360 Degree Continuous Rotation Angle-uncontrollable 500-2500usec Metal Gear RC Servo for Robot Gimbal Car Aircraft

Name: TIANKONGRC TD-8825MG Digital Servo 25kg High Torque 360 Degree Continuous Rotation Angle-uncontrollable 500-2500usec Metal Gear RC Servo for Robot Gimbal Car Aircraft
Brand: HUIZHOU BAIZE TECHNOLOGY CO.,LIMITED
SKU: TD-8825MG
Price: 7.2 USD
Availability: InStock

Brand Name:	TIANKONGRC
Model Number:	TD-8825MG
MOQ:	100PCS
Price:	7.2USD
Payment Terms:	Paypal,T/T, Western Union, MoneyGram
Supply Ability:	10000PCS/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE&ROHS

Working Voltage:

4.8V ~ 8.4V

Torque:

23.5kg.cm(4.8V); 26.8kg.cm(8.4V)

Idle Speed:

0.18sec/60°(4.8V); 0.14sec/60(8.4V)

No-Load Current:

140mA(4.8V); 200mA(8.4V)

Packaging Details:

Color Box

Supply Ability:

10000PCS/Month

Product Description

Feature :

- High-precision metal gears with hard anodizing
- CNC aluminium middle Shell

Specification :

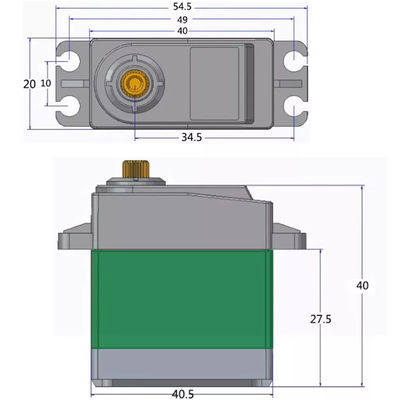

Product Size: 40x20.0x41.5mm
Operating Voltage: 4.8V-8.4V
No-Load Speed: 0.18sec/60°(4.8V); 0.14sec/60(8.4V)
No-Load Current: 140mA(4.8V); 200mA(8.4V)
Stall Torque: 23.5kg.cm(4.8V); 26.8kg.cm(8.4V)
Stall Current: 2600mA±10%(4.8V); 3400mA±10%(8.4V)
Control Signal: Pulse width modification
Pulse Width: 500-2500usec
Center Position: 1500usec
Rotation Angle: 360° (when 500-2500usec)
Dead Band Width: 5usec
Weight: 72g±5%

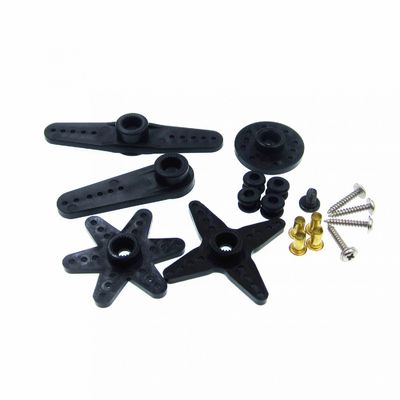

Package includes:

1 X TD-8825MG Digital Servo 25kg

Application:

TIANKONGRC TD-8825MG Digital Servo 25kg High Torque 360 Degree Continuous Rotation Angle-uncontrollable 500-2500usec Metal Gear RC Servo for Robot Gimbal Car Aircraft 0
